Polmet Yapı - Cold Storage

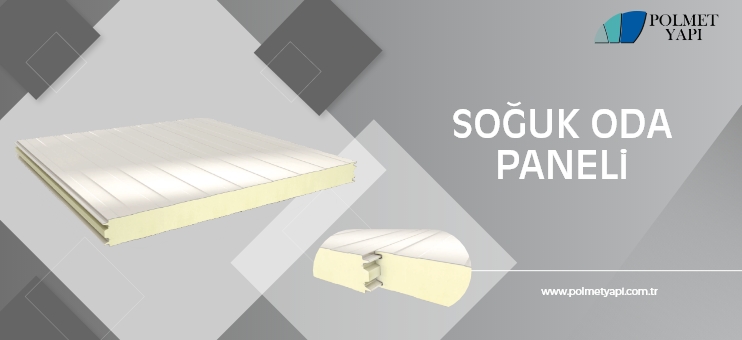

Cold Storage

Striped and flat surface pattern options

Painted galvanized sheet, stainless steel or PVC film laminated interior and exterior alternatives

Fireproof class according to TS EN 13501-1, B-s2 d0 for PUR insulated cold storage panels, B-s1 d0 for PIR insulated cold storage panels

Production flexibility at any length between 2 m and 12 m

80-100-120-150-180-200 mm thickness options

Heat transmission coefficient U value according to TS EN 14509, between 0.27 - 0.11 W / m2K according to panel thickness

PUR and PIR insulation alternatives

ISO, TSE, CE quality certificates

Product	Insulation Thickness	Outer Surface Thickness	Inner Surface Thickness	Min. Size	Max. Size	Thermal Conductivity Coefficient	Thermal Resistance
COLD STORAGE PANEL	d mm	t Ne mm	t Ni mm	m	m	U W/m2K	R W/m2K
	80	0,50 0,60 0,70 0,80	0,40 0,45 0,50 0,60 0,70 0,80	2	12	0,27	3,68
	100					0,22	4,61
	120					0,18	5,52
	150					0,15	6,88
	180					0,12	8,25
	200					0,11	9,16
