Product Features
The feature of use as a complementary product with the production in accordance with the form of sandwich panel with 3 and 5 ribs
Production in 5 and 6 ribs roof / wall trapezoidal form
Painted galvanized sheet inner and outer surface material
Production in different color options
Production flexibility at any length between 2 m and 16 m
0,40-0,50-0,60-0,70-0,80-0,90*-1,00* mm sheet thickness options
Possibility of application on roof and wall with thermal insulation material in one layer without thermal insulation or between two trapezes.
ISO, TSE, CE quality certificates

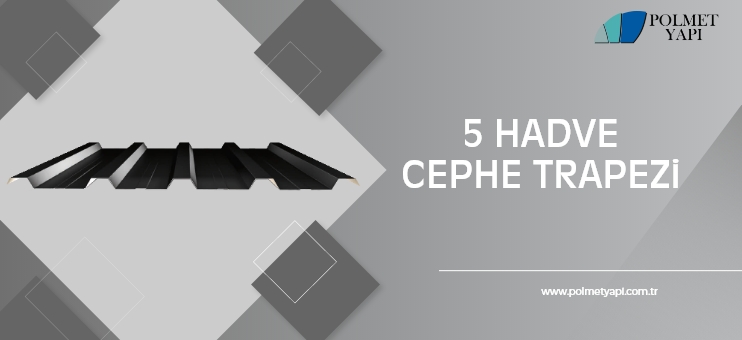

Load Table - 5 Ribs Trapezoidal Sheet
| 5 RIBS TRAPEZOIDAL SHEET |
Multi Span
Spread Load
(kg/m2) |
Sheet Thickness
mm |
Span (m) |
| 1.00 |
1.50 |
2.00 |
2.50 |
3.00 |
0,40
0,50
0,60
0,70
0,80
0,90
1,00 |
190 |
127 |
95 |
75 |
62 |
| 236 |
157 |
118 |
93 |
78 |
| 284 |
190 |
142 |
113 |
94 |
| 332 |
221 |
165 |
132 |
111 |
| 380 |
253 |
190 |
151 |
126 |
| 426 |
284 |
213 |
171 |
142 |
| 474 |
315 |
236 |
189 |
157 |

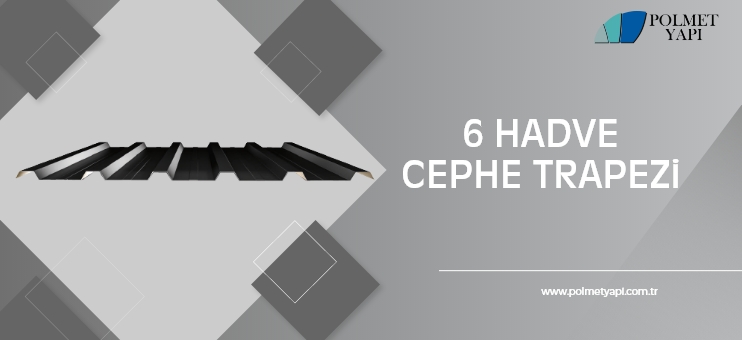

Load Table - 6 Ribs Trapezoidal Sheet
| 6 RIBS TRAPEZOIDAL SHEET |
Multi Span
Spread Load
(kg/m2) |
Sheet Thickness
mm |
Span (m) |
| 1.00 |
1.50 |
2.00 |
2.50 |
3.00 |
0,40
0,50
0,60
0,70
0,80
0,90
1,00 |
190 |
127 |
95 |
75 |
62 |
| 236 |
157 |
118 |
93 |
78 |
| 284 |
190 |
142 |
113 |
94 |
| 332 |
221 |
165 |
132 |
111 |
| 380 |
253 |
190 |
151 |
126 |
| 426 |
284 |
213 |
171 |
142 |
| 474 |
315 |
236 |
189 |
157 |
