PIR / PUR Filled - Sandwich Roof Panel

Product Features

Physical Data

Load Table

Product Features

3 and 5 ribs profiled outer sheet

Prepainted galvanized steel or aluminum inner and outer sheet alternatives

Production in various color options

Application on roofs with a slope higher than 5%

Fire performance according to TS EN 13501-1B-s2; d0 for PUR insulated roof panels,B-s1; d0 for PIR insulated roof panels

Production flexibility at any ordered length between 2 m - 15 m

Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm

According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness

EPS insulation alternative besides PUR and PIR insulation

ISO, TSE, CE quality certificates

Physical Data

Product	Core Thickness	Outer Sheet Thickness	Inner Sheet Thickness	Min. Length	Maks. Length	Heat Transfer Coefficient	Thermal Resistance*
PIR INSULATED ROOF PANELS	d mm	t Ne mm	t Ni mm	m	m	U W/m2K	R W/m2K
	40	0,45 0,50 0,60 0,70 0,80	0,35 0,40 0,45 0,50 0,60 0,70 0,80	2	15	0,49	2,03
	50					0,40	2,48
	60					0,34	2,94
	70					0,29	3,39
	75					0,28	3,62
	80					0,26	3,85
	100					0,21	4,75
	120					0,18	5,65
	150					0,14	7,01
	180					0,12	8,37
	200					0,11	9,27

Hidden Screw - Physical Data

Product	Core Thickness	Outer Sheet Thickness	Inner Sheet Thickness	Min. Length	Maks. Length	Heat Transfer Coefficient	Thermal Resistance*
PIR INSULATED HIDDEN SCREW ROOF PANEL	d mm	t Ne mm	t Ni mm	m	m	U W/m2K	R W/m2K
	40	0,45 0,50 0,60 0,70	0,35 0,40 0,45 0,50 0,60 0,70 0,80	2	15	0,52	1,93
	50					0,42	2,41
	60					0,35	2,89
	70					0,30	3,35
	75					0,28	3,57
	80					0,26	3,80
	100					0,21	4,71
	120					0,18	5,64
	150					0,14	7,01
	180					0,12	8,37
	200					0,11	9,27

With CTP - Physical Data

Product	Core Thickness	Outer Sheet Thickness	Inner Sheet Thickness	Min. Length	Maks. Length	Heat Transfer Coefficient	Thermal Resistance*
PIR INSULATED WITH CTP ROOF PANEL	d mm	t Ne mm	t Ni mm	m	m	U W/m2K	R W/m2K
	40	0,45 0,50 0,60 0,70 0,80	0,70 1,00	2	12	0,49	2,03
	50					0,40	2,48
	60					0,34	2,94
	70					0,30	3,39
	75					0,28	3,62
	80					0,26	3,85
	100					0,21	4,75
	120					0,18	5,65
	150					0,14	7,01
	180					0,12	8,37
	200					0,11	9,27

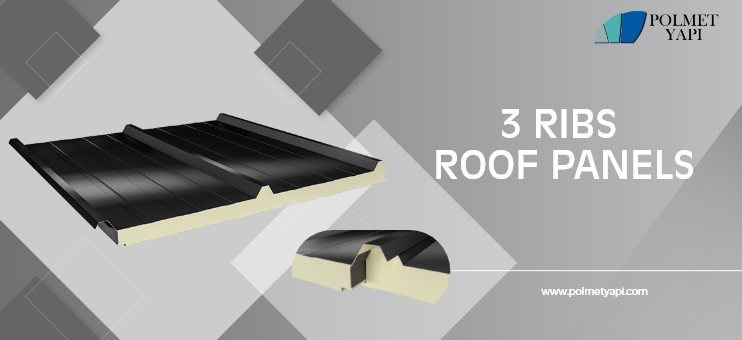

Load Table - 3 Ribs

PIR INSULATED ROOF PANEL			Multi Span Spread Load (kg/m2)
Outer Sheet mm	Inner Sheet mm	Core Thickness mm	Span (m)
Outer Sheet mm	Inner Sheet mm	Core Thickness mm	1.00	1.50	2.00	2.50	3.00
0,50	0,40	40	290	169	121	94	70
		50	353	211	152	119	86
		60	403	246	179	141	102
		70	446	277	203	160	119
		75	466	291	214	168	127
		80	485	305	225	177	135
		100	552	355	263	206	166
		120	613	399	296	230	185
		150	694	458	338	261	207
		180	768	509	373	285	225
		200	814	540	394	300	235

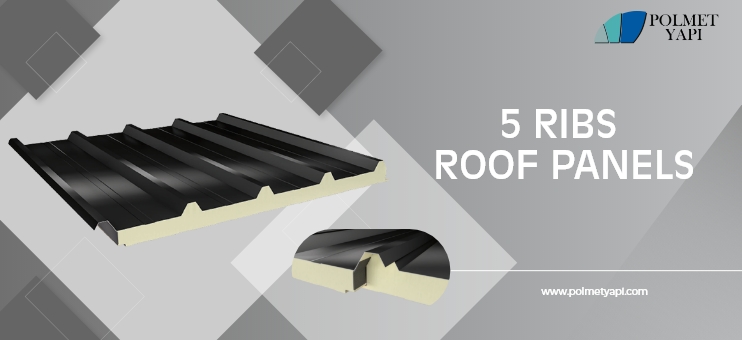

Load Table - 5 Ribs

PIR INSULATED ROOF PANEL			Multi Span Spread Load (kg/m2)
Outer Sheet mm	Inner Sheet mm	Core Thickness mm	Span (m)
Outer Sheet mm	Inner Sheet mm	Core Thickness mm	1.00	1.50	2.00	2.50	3.00
0,50	0,40	40	434	241	167	128	86
		50	527	300	211	152	102
		60	600	349	248	173	119
		70	660	391	281	193	135
		75	688	411	296	203	144
		80	713	430	311	214	152
		100	805	498	364	256	186
		120	886	558	411	298	220
		150	994	640	472	361	272
		180	1093	712	525	406	323
		200	1119	757	557	429	340

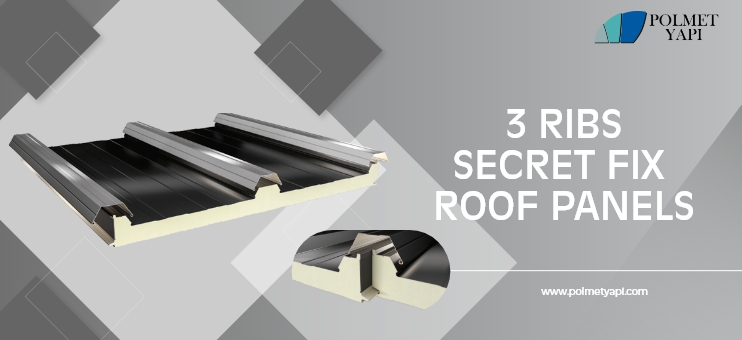

Load Table - 3 Ribs with Hidden Screws

PIR INSULATED ROOF PANEL			Multi Span Spread Load (kg/m2)
Outer Sheet mm	Inner Sheet mm	Core Thickness mm	Span (m)
Outer Sheet mm	Inner Sheet mm	Core Thickness mm	1.00	1.50	2.00	2.50	3.00
0,50	0,40	40	370	201	137	104	84
		50	481	266	184	141	111
		60	563	318	223	172	128
		70	629	362	256	199	144
		75	658	382	272	211	153
		80	684	400	287	223	161
		100	777	468	340	266	195
		120	857	527	386	303	230
		150	960	606	447	351	282
		180	1054	677	501	392	315
		200	1104	720	533	416	333

Load Table - 5 Ribs with Hidden Screws

PIR INSULATED ROOF PANEL			Multi Span Spread Load (kg/m2)
Outer Sheet mm	Inner Sheet mm	Core Thickness mm	Span (m)
Outer Sheet mm	Inner Sheet mm	Core Thickness mm	1.00	1.50	2.00	2.50	3.00
0,50	0,40	40	495	263	176	132	106
		50	632	342	233	177	123
		60	733	405	280	207	139
		70	814	458	321	228	156
		75	850	483	339	238	164
		80	882	505	357	249	173
		100	996	587	421	291	207
		120	1043	657	477	333	241
		150	1067	736	552	396	293
		180	1085	743	565	456	346
		200	1093	747	567	457	381

Load Table - 3 Ribs with CTP

PIR INSULATED ROOF PANEL			Multi Span Spread Load (kg/m2)
Outer Sheet mm	Inner Sheet mm	Core Thickness mm	Span (m)
Outer Sheet mm	Inner Sheet mm	Core Thickness mm	1.00	1.50	2.00	2.50	3.00
0,50	0,70	40	98
		50	140	60
		60	189	83
		70	237	110
		75	252	121	51
		80	276	132	56
		100	343	186	85	60
		120	456	215	99	69	52
		150	529	251	116	82	61
		180	597	283	130	92	68
		200	638	308	138	101	74

Load Table - 5 Ribs with CTP

PIR INSULATED ROOF PANEL			Multi Span Spread Load (kg/m2)
Outer Sheet mm	Inner Sheet mm	Core Thickness mm	Span (m)
Outer Sheet mm	Inner Sheet mm	Core Thickness mm	1.00	1.50	2.00	2.50	3.00
0,50	0,70	40	100
		50	142	57
		60	186	76
		70	230	97	55
		75	254	109	59
		80	265	122	66
		100	317	169	95	58
		120	414	223	127	79	54
		150	544	286	163	111	75
		180	667	323	183	127	91
		200	713	350	196	133	97

Product Description

PIR (Polyisocyanurate) is a product with a rigid foam structure, which has improved fire resistance, apart from high heat and impermeability insulation. In the event of a fire, the smoke generation is also very low compared to polyurethane. It can be produced with different color options from 40mm to 200mm. Polyisocyanurate filler is in the B-s1; d0 non-combustibility class according to TS EN 13501-1.
