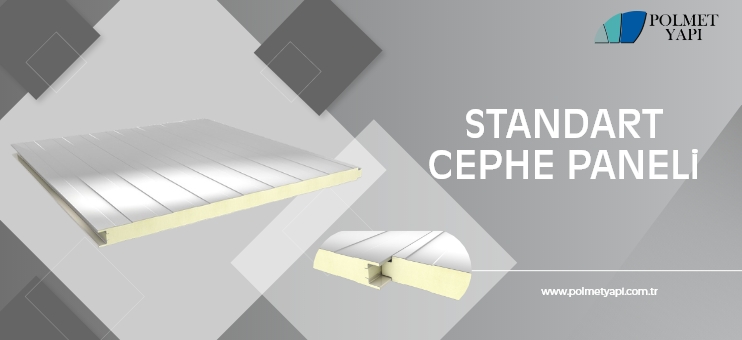

PIR / PUR Filled - Sandwich Wall Panel

Product Features

Physical Features

Load Table

Product Features

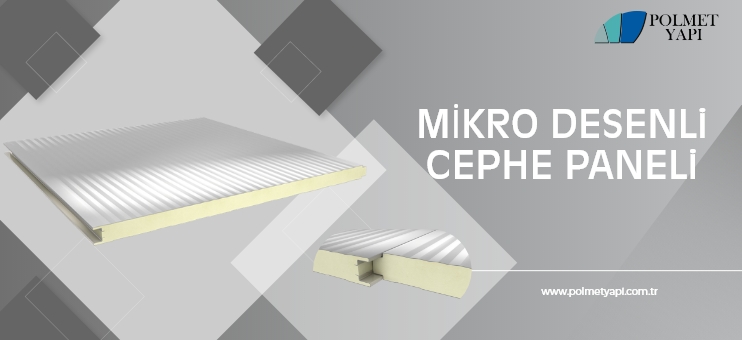

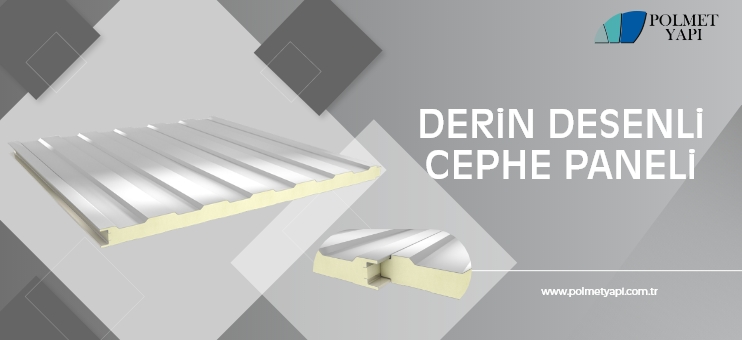

Lined, micro and deep traced outer surface pattern options

Painted galvanized sheet or aluminum inner and outer surface alternatives

Production in different color options

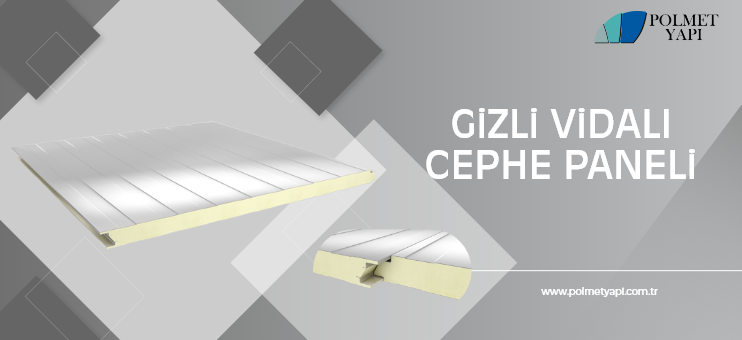

Screwing feature from outside or hidden

Both horizontal and vertical applicability

Fireproof class according to TS EN 13501-1, B-s2 d0 for PUR insulated wall panels, B-s1d0 for PIR insulated wall panels

Production flexibility at any length between 2 m and 12 m

Thickness options of 40-50-60-70-75-80-100-120-150-180-200 mm for striped and micro-patterned wall panels, and 40-50-60 mm for deep-traced panels

Heat permeability coefficient U value according to TS EN 14509, between 0.57 - 0.11 W / m2K in striped and micro-patterned, and 0.57 - 0.37 W / m2K in deep lined according to panel thickness.

In addition to PUR and PIR insulation, Rockwool and EPS insulation alternatives

ISO, TSE, CE quality certificates

Physical Features

Product	Insulation Thickness	Outer Surface Thickness	Inner Surface Thickness	Min. Size	Max. Size	Thermal Conductivity Coefficient		Thermal Resistance
STANDARD WALL PANEL	d mm	t Ne mm	t Ni mm	m	m	U W/m2K		R W/m2K
	d mm	t Ne mm	t Ni mm	m	m	Striped and Micro Patterned	Deep Scars	Striped and Micro Patterned	Deep Scars
	0,40	0,40 0,45 0,50 0,60 0,70 0,80	0,35 0,40 0,50 0,60 0,70 0,80	2	12	0,57	0,57	1,75	1,75
	0,50					0,45	0,45	2,22	2,22
	0,60					0,37	0,37	2,71	2,71
	0,70					0,31		3,18
	0,75					0,29		3,42
	0,80					0,27		3,66
	1,00					0,22		4,58
	1,20					0,18		5,49
	1,50					0,15		6,84
	1,80					0,12		8,21
	2,00					0,11		9,12

Hidden Screw - Physical Features

Product	Insulation Thickness	Outer Surface Thickness	Inner Surface Thickness	Min. Size	Max. Size	Thermal Conductivity Coefficient		Thermal Resistance
HIDDEN SCREWED WALL PANEL	d mm	t Ne mm	t Ni mm	m	m	U W/m2K		R W/m2K
	d mm	t Ne mm	t Ni mm	m	m	Striped and Micro Patterned	Deep Scars	Striped and Micro Patterned	Deep Scars
	0,40	0,40 0,45 0,50 0,60 0,70 0,80	0,35 0,40 0,50 0,60 0,70 0,80	2	12	0,67	0,67	1,50	1,50
	0,50					0,50	0,50	2,00	2,00
	0,60					0,42	0,42	2,39	2,39
	0,70					0,33		3,03
	0,75					0,30		3,29
	0,80					0,28		3,52
	1,00					0,22		4,47
	1,20					0,19		5,40
	1,50					0,15		6,77
	1,80					0,12		8,16
	2,00					0,11		9,07

Load Table

PIR INSULATED WALL PANEL			Multi Span Spread Load (kg/m2)
Outer Sheet mm	Inner Sheet mm	Core Thickness mm	Span (m)
Outer Sheet mm	Inner Sheet mm	Core Thickness mm	1.00	1.50	2.00	2.50	3.00
0,50	0,40	40	374	238	175	139	116
		50	479	304	222	176	146
		60	403	246	179	141	102
		70	586	371	271	213	176
		75	748	474	345	271	223
		80	803	509	370	290	239
		100	1022	650	471	369	303
		120	1243	793	574	448	368
		150	1577	1009	732	571	467
		180	1912	1228	892	695	568
		200	2135	1375	999	779	636

Load Table - Hidden Screw

PIR INSULATED HIDDEN SCREW WALL PANEL			Multi Span Spread Load (kg/m2)
Outer Sheet mm	Inner Sheet mm	Core Thickness mm	Span (m)
Outer Sheet mm	Inner Sheet mm	Core Thickness mm	1.00	1.50	2.00	2.50	3.00
0,50	0,40	40	406	259	190	151	126
		50	521	330	242	191	158
		60	637	404	294	232	192
		70	754	478	348	273	225
		75	748	474	345	271	223
		80	813	516	375	294	243
		100	1011	706	512	400	329
		120	1351	861	624	487	399
		150	1713	1097	795	620	507
		180	2077	1335	969	755	617
		200	2320	1494	1086	846	691
