Product Features

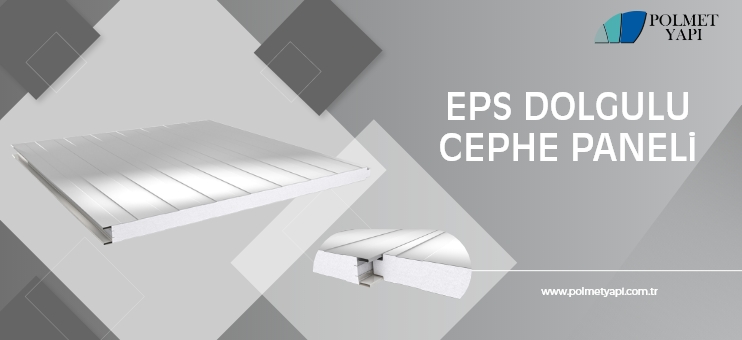

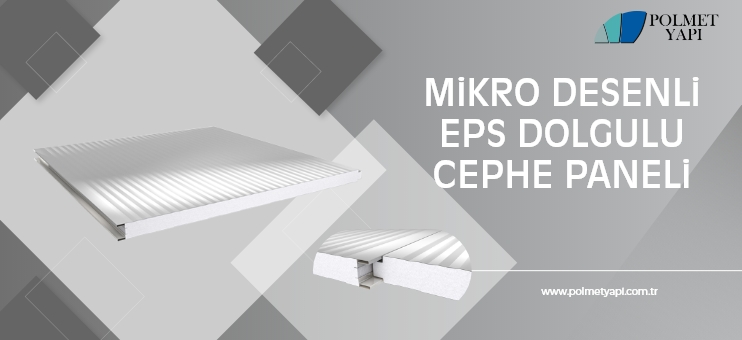

Striped and micro outer surface pattern options
Painted galvanized sheet inner and outer surface material
Production in different color options
Screwing feature from outside or hidden
Both horizontal and vertical applicability
Flammability class according to TS EN 13501-1, E
Production flexibility at any length between 2 m and 12 m
50-60-70-75-80-100-120-150 mm thickness options
Heat transmission coefficient U value according to TS EN 14509, between 0,92-0,25 W / m2K according to panel thickness
PUR, PIR and Rockwool insulation alternative besides EPS insulation
ISO, TSE, CE quality certificates
Physical Features
Product |
Insulation Thickness |
Outer Surface Thickness |
Inner Surface Thickness |
Min. Size |
Max. Size |
Thermal Conductivity Coefficient |
Thermal Resistance |
EPS FILLED WALL PANEL |
d mm |
t Ne mm |
t Ni mm |
m |
m |
U W/m2K |
R W/m2K |
40 |
0,45 0,50 0,60 0,70 0,80 |
0,35 0,40 0,50 0,60 0,70 0,80 |
2 |
12 |
0,92 |
1,09 |
50 |
0,73 |
1,36 |
60 |
0,61 |
1,65 |
70 |
0,52 |
1,93 |
75 |
0,48 |
2,06 |
80 |
0,45 |
2,20 |
100 |
0,37 |
2,74 |
120 |
0,31 |
3,26 |
150 |
0,25 |
4,05 |
Load Table
EPS FILLED WALL PANEL |
Multi Span Spread Load (kg/m2) |
Outer Sheet mm |
Inner Sheet mm |
Core Thickness mm |
Span (m) |
1.00 |
1.50 |
2.00 |
2.50 |
3.00 |
0,50 |
0,40 |
40 |
278 |
176 |
129 |
103 |
85 |
50 |
357 |
226 |
165 |
130 |
108 |
60 |
438 |
276 |
201 |
158 |
131 |
70 |
519 |
328 |
238 |
187 |
154 |
75 |
560 |
354 |
257 |
201 |
166 |
80 |
601 |
380 |
276 |
216 |
178 |
100 |
766 |
487 |
352 |
275 |
226 |
120 |
932 |
594 |
430 |
335 |
274 |
150 |
1183 |
758 |
549 |
428 |
349 |
