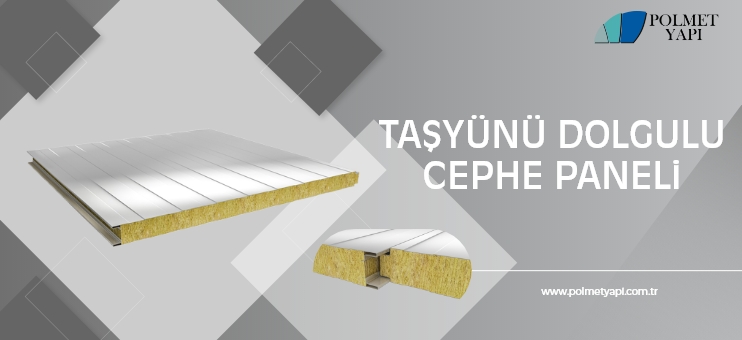

Product Features

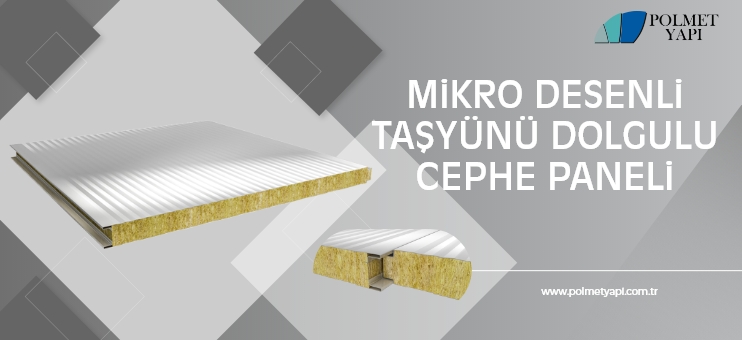

Striped and micro outer surface pattern options
Painted galvanized sheet inner and outer surface material
Production in different color options

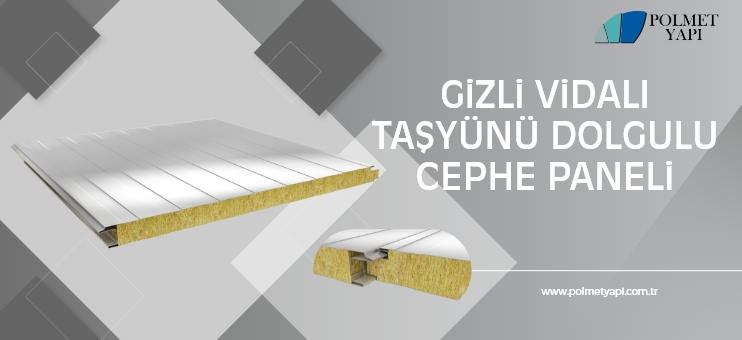

Screwing feature from outside or hidden
Both horizontal and vertical applicability
Usage in buildings requiring fire safety
Fireproof class according to TS EN 13501-1, A2-s1d0 for Rockwool insulated wall panels
Production flexibility at any length between 2 m and 10 m
50-60-80-100-120-150 mm thickness options
Heat transmission coefficient U value according to TS EN 14509, between 0.70 - 0.24 W / m2K according to panel thickness
In addition to rockwool insulation, PUR, PIR and EPS insulation alternative
ISO, TSE, CE quality certificates
Physical Features
| Product |
Insulation Thickness |
Outer Surface Thickness |
Inner Surface Thickness |
Min. Size |
Max. Size |
Thermal Conductivity Coefficient |
Thermal Resistance |
ROCKWOOL FILLED
WALL PANEL |
d
mm |
t
Ne
mm |
t
Ni
mm |
m |
m |
U
W/m2K |
R
W/m2K |
| 50 |
0,50
0,60
0,70
0,80 |
0,40
0,45
0,50
0,60
0,70
0,80 |
2 |
10 |
0,70 |
1,43 |
| 60 |
0,58 |
1,73 |
| 80 |
0,43 |
2,31 |
| 100 |
0,35 |
2,88 |
| 120 |
0,29 |
3,43 |
| 150 |
0,24 |
4,26 |
Load Table
| ROCKWOOL FILLED WALL PANEL |
Multi Span
Spread Load
(kg/m2) |
Outer Sheet
mm |
Inner Sheet
mm |
Core Thickness
mm |
Span (m) |
| 1.00 |
1.50 |
2.00 |
2.50 |
3.00 |
| 0,50 |
0,50 |
50 |
330 |
210 |
156 |
125 |
104 |
| 60 |
407 |
258 |
190 |
151 |
126 |
| 80 |
565 |
356 |
260 |
206 |
171 |
| 100 |
726 |
458 |
333 |
262 |
216 |
| 120 |
889 |
561 |
407 |
319 |
263 |
| 150 |
1135 |
719 |
520 |
407 |
334 |
