Product Features
3 and 5 ribs outer surface form
Prepainted galvanized steel or aluminum inner and outer sheet alternatives
Production in various color options
Application on roofs with a slope higher than 5%
Fire performance according to TS EN 13501-1, E for EPS insulated roof panels
Production flexibility at any ordered length between 2 m - 15 m
Core thickness options 40-50-60-70-75-80-100-120-150 mm
According to TS EN 14509, U values range between 0,79 – 0,24 W/m2K depending on the panel thickness
PUR and PIR insulation alternatives besides EPS insulation
ISO, TSE, CE quality certificates
Product |
Core Thickness |
Outer Sheet Thickness |
Inner Sheet Thickness |
Min. Length |
Maks. Length |
Heat Transfer Coefficient |
Thermal Resistance* |

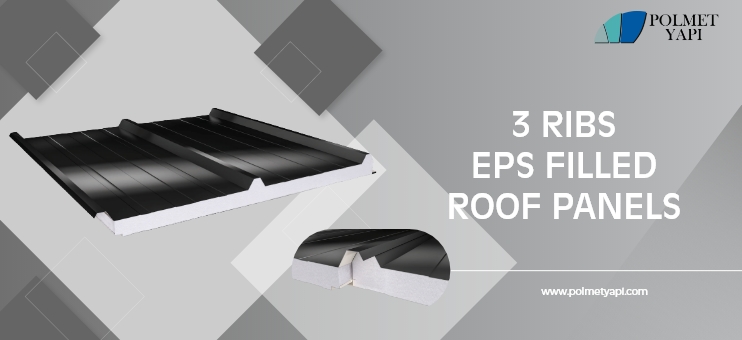

EPS FILLED 3 RIBS ROOF PANEL |
d mm |
t Ne mm |
t Ni mm |
m |
m |
U W/m2K |
R W/m2K |
40 |
0,45 0,50 0,60 0,70 0,80 |
0,35 0,40 0,45 0,50 0,60 0,70 0,80 |
2 |
15 |
0,79 |
1,26 |
50 |
0,66 |
1,52 |
60 |
0,56 |
1,79 |
70 |
0,49 |
2,05 |
75 |
0,46 |
2,18 |
80 |
0,43 |
2,31 |
100 |
0,35 |
2,83 |
120 |
0,30 |
3,36 |
150 |
0,24 |
4,14 |
Load Table - 3 Ribs Roof Panel with Eps Filling
3 RIBS ROOF PANEL FILLED IN EPS |
Multi Span Spread Load (kg/m2) |
Outer Sheet mm |
Inner Sheet mm |
Core Thickness mm |
Span (m) |
1.00 |
1.50 |
2.00 |
2.50 |
3.00 |
0,50 |
0,50 |
40 |
271 |
153 |
108 |
84 |
59 |
50 |
326 |
188 |
135 |
106 |
71 |
60 |
368 |
218 |
157 |
121 |
84 |
70 |
404 |
243 |
178 |
136 |
96 |
75 |
421 |
255 |
187 |
144 |
102 |
80 |
436 |
266 |
196 |
152 |
109 |
100 |
491 |
308 |
228 |
181 |
134 |
120 |
539 |
344 |
256 |
202 |
160 |
150 |
605 |
394 |
293 |
230 |
186 |
Load Table - 5 Ribs Roof Panel with Eps Filling
3 RIBS ROOF PANEL FILLED IN EPS |
Multi Span Spread Load (kg/m2) |
Outer Sheet mm |
Inner Sheet mm |
Core Thickness mm |
Span (m) |
1.00 |
1.50 |
2.00 |
2.50 |
3.00 |
0,50 |
0,40 |
40 |
410 |
221 |
151 |
115 |
74 |
50 |
494 |
272 |
188 |
130 |
86 |
60 |
557 |
313 |
220 |
145 |
99 |
70 |
609 |
349 |
248 |
161 |
111 |
75 |
632 |
365 |
260 |
169 |
118 |
80 |
653 |
380 |
273 |
176 |
124 |
100 |
729 |
437 |
317 |
308 |
150 |
120 |
791 |
486 |
357 |
239 |
176 |
150 |
807 |
553 |
409 |
287 |
215 |
