Product Features

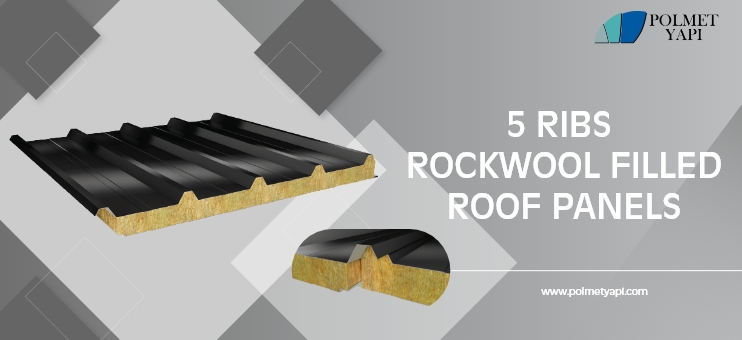

5 ribs profiled outer sheet
Prepainted galvanized steel inner and outer sheet material
Production in various color options
Usage in buildings that require fire safety
Application on roofs with a slope higher than 5%
Fire performance according to TS EN 13501-1,A2-s1; d0 for Rock Wool insulated roof panels
Fireproof class according to TS EN 13501-1, B-s1d0 for Rock Wool insulated membrane roof panels
Production flexibility at any ordered length between 2 m - 12 m
Core thickness options 50-60-80-100-120-150 mm
According to TS EN 14509, U values range between 0,63 – 0,23 W/m2K depending on the panel thickness
PUR, PIR, EPS insulation alternatives besides Rock Wool insulation
ISO, TSE, CE quality certificates
Physical Data - Rockwool Filled
| Product |
Core Thickness |
Outer Sheet Thickness |
Inner Sheet Thickness |
Min. Length |
Maks. Length |
Heat Transfer Coefficient |
Thermal Resistance* |
ROCKWOOL FILLED
ROOF PANEL |
d
mm |
t
Ne
mm |
t
Ni
mm |
m |
m |
U
W/m2K |
R
W/m2K |
| 50 |
0,50
0,60
0,70
0,80 |
0,40
0,45
0,50
0,60
0,70
0,80 |
2 |
12 |
0,63 |
1,60 |
| 60 |
0,53 |
1,87 |
| 80 |
0,41 |
2,43 |
| 100 |
0,34 |
2,98 |
| 120 |
0,28 |
3,53 |
| 150 |
0,23 |
4,36 |
Load Table - Rock Wool Filled
| ROCKWOOL FILLED ROOF PANEL |
Multi Span
Spread Load
(kg/m2) |
Outer Sheet
mm |
Inner Sheet
mm |
Core Thickness
mm |
Span (m) |
| 1.00 |
1.50 |
2.00 |
2.50 |
3.00 |
| 0,50 |
0,50 |
50 |
542 |
313 |
222 |
166 |
113 |
| 60 |
618 |
365 |
262 |
189 |
132 |
| 80 |
739 |
451 |
329 |
235 |
170 |
| 100 |
774 |
525 |
386 |
282 |
208 |
| 120 |
790 |
547 |
418 |
329 |
246 |
| 150 |
807 |
555 |
422 |
341 |
286 |
