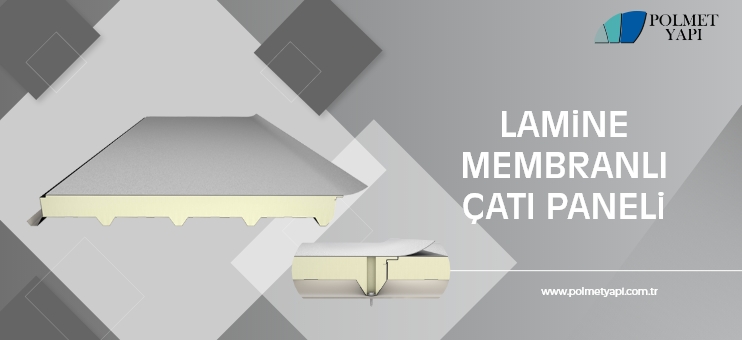

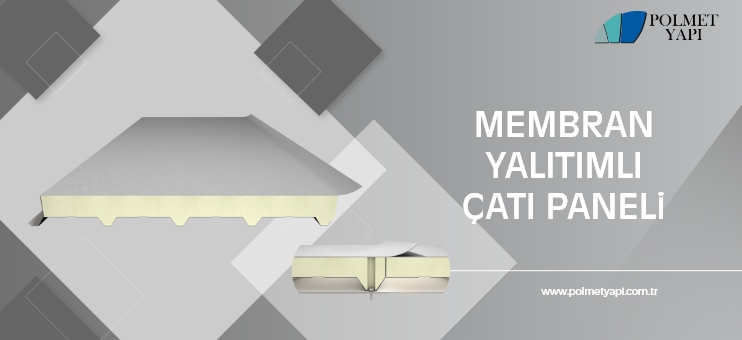

Product Features
5 ribs profiled inner sheet
Inner sheet is prepainted galvanized steel, outer sheet is PVC Membrane
Production in various color options
Application of flat roofs and roofs with a slope lower than 5%
Fire performance according to TS EN 13501-1,B-s2; d0 for PUR insulated roof panels,B-s1; d0 for PIR insulated roof panels
Fireproof class according to TS EN 13501-1, B-s1 d0 for Rock Wool insulated membrane roof panels
Production flexibility at any ordered length between 2 m - 12 m
Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm
According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness
Mineral Wool insulation alternative besides PUR and PIR insulation
Membrane - Physical Properties
| Product |
Core Thickness |
Outer Sheet Thickness |
Inner Sheet Thickness |
Min. Length |
Maks. Length |
Heat Transfer Coefficient |
Thermal Resistance* |
PIR INSULATED
MEMBRANE
ROOF PANEL |
d
mm |
t
Ne
mm |
t
Ni
mm |
m |
m |
U
W/m2K |
R
W/m2K |
| 40 |
1,20
1,50 |
0,50
0,60
0,70
0,80 |
2 |
12 |
0,49 |
2,04 |
| 50 |
0,40 |
2,50 |
| 60 |
0,34 |
2,95 |
| 70 |
0,29 |
3,41 |
| 75 |
0,28 |
3,63 |
| 80 |
0,26 |
3,86 |
| 100 |
0,21 |
4,76 |
| 120 |
0,18 |
5,66 |
| 150 |
0,14 |
7,02 |
| 180 |
0,12 |
8,38 |
| 200 |
0,11 |
9,29 |
Rockwool Filled Membrane - Physical Properties
| Product |
Core Thickness |
Outer Sheet Thickness |
Inner Sheet Thickness |
Min. Length |
Maks. Length |
Heat Transfer Coefficient |
Thermal Resistance* |
ROCKWOOL FILLED
MEMBRANE ROOF PANEL |
d
mm |
t
Ne
mm |
t
Ni
mm |
m |
m |
U
W/m2K |
R
W/m2K |
| 50 |
1,20
1,50 |
0,50
0,60
0,70
0,80 |
2 |
12 |
0,62 |
1,61 |
| 60 |
0,53 |
1,89 |
| 80 |
0,41 |
2,45 |
| 100 |
0,33 |
3,00 |
| 120 |
0,28 |
3,55 |
| 150 |
0,23 |
4,38 |
Load Table - With Membrane
| PIR INSULATED ROOF PANEL |
Multi Span
Spread Load
(kg/m2) |
Inner Sheet
mm |
Span (m) |
| 1.00 |
1.50 |
2.00 |
2.50 |
3.00 |
0,50
0,60
0,70
0,80 |
202 |
131 |
99 |
80 |
67 |
| 242 |
161 |
121 |
96 |
81 |
| 281 |
188 |
141 |
112 |
94 |
| 231 |
214 |
161 |
129 |
106 |
Load Table - Rockwool Filled Membrane
| ROCKWOOL FILLED MEMBRANE ROOF PANEL |
Multi Span
Spread Load
(kg/m2) |
Inner Sheet Sac
mm |
Span (m) |
| 1.00 |
1.50 |
2.00 |
2.50 |
3.00 |
0,50
0,60
0,70
0,80 |
202 |
131 |
99 |
80 |
67 |
| 242 |
161 |
121 |
96 |
81 |
| 281 |
188 |
141 |
112 |
94 |
| 321 |
214 |
161 |
129 |
106 |
